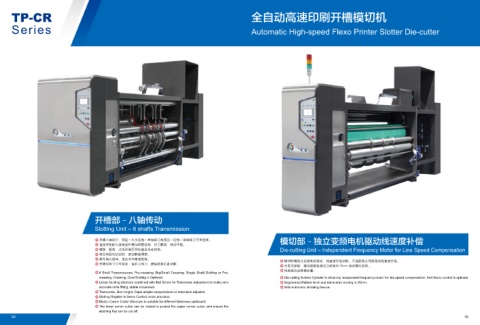

TP-CR 全自动高速印刷开槽模切机

Series Automatic High-speed Flexo Printer Slotter Die-cutter

开槽部 – 八轴传动

Slotting Unit – 8 shafts Transmission

开槽八轴设计，预压—大小压线—单轴双刀或预压—压线—双轴双刀可供选择。 模切部 – 独立变频电机驱动线速度补偿
直线导轨配合滚珠丝杆横向调整结构，对刀精准，移动平稳。
横移、箱高、过纸间隙采用电脑及电动控制。 Die-cutting Unit – Independent Frequency Motor for Line Speed Compensation
相位伺服电机控制，更加精密调整。
弹性角刀结构、适应不同厚度纸板。
模切胶辊独立变频电机驱动，线速度补偿功能。可选配独立伺服驱动线速度补偿。
开槽切角下刀可转动，保护上角刀，确保纸板钉条切断。
分段式胶垫，模切胶辊机械式凸轮换向 30mm 游动横向结构。
8 Shaft Transmissions, Pre-creasing, Big/Small Creasing, Single Shaft Slotting or Pre- 带胶垫自动修模装置。
creasing, Creasing, Dual Slotting is Optional. Die-cutting Rubber Cylinder is driven by independent frequency motor for line speed compensation. And Servo control is optional.
Linear Guiding structure combined with Ball Screw for Transverse adjustment to make sure Segmented Rubber Anvil and transverse moving is 30mm.
accurate knife fitting, stable movement. With Automatic Grinding Device.
Transverse, Box Height, Gaps adopts computerized or motorized adjusted.
Slotting Register is Servo Control, more precision.
Elastic Corner Cutter Structure to suitable for different thickness cardboard.
The lower corner cutter can be rotated to protect the upper corner cutter, and ensure the
stitching flap can be cut off.
